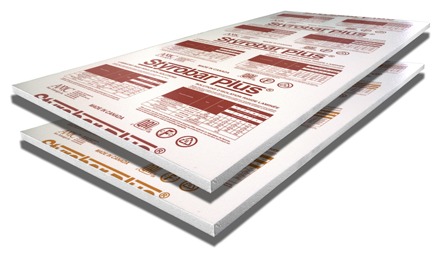

Styrobar Plus
High quality closed cell rigid foam insulation, with a heat laminated clear film that adds durability, performance and value.
STYROBAR is a high quality, closed cell, rigid foam insulation made from Expanded Poly Styrene (EPS). STYROBAR PLUS is the same high quality rigid foam insulation with the added value of a heat laminated clear film which greatly enhances our product’s durability, performance and value.
Four grades are available, from Type 1 through Type 3, so the panel can be matched to the load and the R-value the assembly actually needs — from cladding under siding through to shallow foundations and grade beams.
- Heat laminated clear film for added durability and performance
- Four grades from 10 PSI to 40 PSI compressive strength
- R-3.75 to R-4.2 per inch depending on grade
- Works above grade, at the perimeter and below slabs
- Custom lengths to 16′ in 1/4″ thickness increments
- Fan Fold and Rolled formats for continuous coverage
| Product | Styrobar Plus laminated rigid foam insulation |
|---|---|
| Material | Closed cell expanded polystyrene (EPS) |
| Facing | Heat laminated clear film |
| Grades | Styrobar 16, 22, 28 and HS-40 |
| R-value range | 3.75 to 4.2 per inch, depending on grade |
| Compressive strength | 10 to 40 PSI at 10% deformation, depending on grade |
| Standard sheets | 4′×8′ up to 5″ thick |
| Custom sheets | Lengths up to 16′, in 1/4″ thickness increments |
| Also available | Fan Fold and Rolled Poly Pro |
Not sure what you need?
Send us a plan set or even a rough sketch. We’ll come back with a material list, a delivered price and an honest read on whether this is the right product for your build.
Where it gets used
Above Grade
Cladding under siding, joist cavities and masonry walls.
Perimeter & Cold Storage
Exterior perimeter insulation, frost protection, coolers, freezers and ice arenas.
Below Slab & Foundation
Under concrete slabs, grade beams, foundation walls and shallow foundations.
Choose the grade for the load
R-value, density and compressive strength by product type.
| Type | Name | R-Value | Density | Compressive strength @ 10% deformation |
|---|---|---|---|---|
| Type 1 / I | Styrobar 16 | 3.75 / 1″ | 1.15 lb | 10 PSI |
| Type 2 / II | Styrobar 22 | 4 / 1″ | 1.35 lb | 16 PSI |
| Type 3 / IX | Styrobar 28 | 4.2 / 1″ | 1.8 lb | 25 PSI |
| Type 3 / IX | Styrobar HS-40 | 4.2 / 1″ | 2.4 lb | 40 PSI |
Construction with Styrobar Plus
Above grade
- Above-grade cladding under siding
- Joist cavities
- Masonry walls
Perimeter and cold storage
- Exterior perimeter insulation
- Frost protection
- Coolers, freezers and ice arenas
Below slab and foundation
- Under concrete slabs
- Grade beams
- Foundation walls
- Shallow foundations
More than 4′×8′ sheets
Styrobar Plus is available in more than just 4′×8′ sheets of up to 5″ thick. It can be ordered in sheet lengths of up to 16′ long, in 1/4″ thickness increments. It is also available in:
Fan Fold
Fan Fold Poly Pro is a continuous sheet that is 4′ tall, 3/8″ to 3″ thick and 50′ long. It is then fan folded back and forth into 25 sheets of 4′ by 2′, making a continuous 200 sq ft piece.
Rolled
Rolled Poly Pro is a 4′ wide roll of laminated insulation, available in 3/8″ to 5/8″ thicknesses and 70′ to 75′ long depending on thickness, making each roll a continuous 280 to 300 sq ft piece.
